Airmar M265 Low-High Chirp 1kW
Airmar M265 Low-High Chirp 1kW
Airmar M265 Low-High Chirp 1kW

Outta Range

Airmar M265 Low-High Chirp 1kW

$2,349.00
model:

model
Quantity:

M265 Low-High Chirp 1kW

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

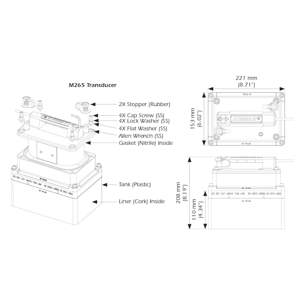

The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

Features

  • Depth only
  • 1 kW of power for great deep-water performance
  • Low frequency: 42 to 65 kHz
    • 25° to 16° beamwidth
    • Maximum depth of 914 m (3000')
  • High frequency: 130 to 210 kHz
    • 10° to 6° beamwidth
    • Maximum depth of 304 m (1000')
  • 103 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Plastic transducer housing and mounting tank
  • Also available as transom (TM265LH), thru-hull (B265LH), pocket (PM265LH), and cavity/welded-tank (CM265LH) mounts
  • Patented Xducer ID® technology

M265 Low-High Chirp, 1kW, Garmin 12-Pin, DO

Specifications

  • Brand: Airmar Technology
  • Acoustic Window: Urethane
  • Cable-Length: 10 m (33')
  • Common Use: Fishing, Commercial Fishing
  • Connector: Garmin 12-Pin
  • Country of Origin: USA
  • Deadrise Range: 0° to 22°
  • Display Connector: 12G
  • Frequency Band: Low-High
  • Functions: Depth
  • High Frequency: 130-210 kHz
  • High Frequency Beamwidth: 10°-6°
  • Hull Material: Solid fiberglass only
  • Low Frequency: 42-65 kHz
  • Low Frequency Beamwidth: 25°-16°
  • Material: Plastic
  • Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull
  • Max Deadrise Angle: 30°
  • Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
  • Max Vessel LOA: Up to 11 m (36')
  • Mix and Match Series: 12-Pin Chirp
  • Mounting Style: In-Hull
  • Power Rating: 1 kW
  • Sensor Connector: MMC
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Tilted Element: No
  • Weight: 5.2 kg (11.5 lb.)

M265 Low-High Chirp, 1kW, Simrad With Adapter block, DO

Specifications

  • Brand: Airmar Technology
  • Acoustic Window: Urethane
  • Cable-Length: 10 m (33')
  • Common Use: Fishing, Commercial Fishing
  • Connector: Bare Wire
  • Country of Origin: USA
  • Cross Reference: 010-12380-20
  • Deadrise Range: 0° to 22°
  • Display Connector: Adapter block
  • Frequency Band: Low-High
  • Functions: Depth
  • High Frequency: 130-210 kHz
  • High Frequency Beamwidth: 10°-6°
  • Hull Material: Solid fiberglass only
  • Low Frequency: 42-65 kHz
  • Low Frequency Beamwidth: 25°-16°
  • Material: Plastic
  • Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull
  • Max Deadrise Angle: 30°
  • Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
  • Max Vessel LOA: Up to 11 m (36')
  • Mounting Style: In-Hull
  • Power Rating: 1 kW
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Tilted Element: No
  • Weight: 5.2 kg (11.5 lb.)
