Outta Range
Hella Black Magic Mini Light Bars
Size
Hella Black Magic Mini Light Bars
Black Magic Tough Range Double Straight
Light output
Wide Combination beam (Pencil + Flood Driving) With lumens to spare, this range give a similar distance to the Tough Single, plus plenty of light spread for short to medium range flood.
Application
Like the Tough Straight, this combination beam with wider output helps you see the next turn, or Australia’s unique wildlife sooner and safer. Better follows the roof line of the windscreen giving a more even gap and unique aesthetic.

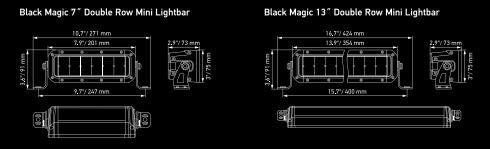

7" Mini Light Bars
|
Mounting Type |
mounting, Screw Connection |
|
Fastening Type |
Vertical |
|
Light Design |
LED |
|
Lamp Type |
LED |
|
Voltage |
12 V, 24 V |
|
Fitting Position |
Front |
|
Height |
91 mm |
|
Length |
201 mm |
|
Width |
75 mm |
|
Depth |
73 mm |
|
Light Function |
with high beam (LED) |
|
Number of light functions |
1 |
|
Prot.type (IP Code) |
IP68, IP69K |
|
Luminous Flux |
2,100 lm |
|
Colour Temperature |
5,700 K |
|
Registration Type |
ECE approved |
|
Fulfils ECE norm. |
R10, R149 |
|
Reference number |
30 |
|
Cable Length |
2,000 mm |
|
Lens Colour |
Crystal clear |
|
Frame Colour |
Black |
|
Shape |
dual version, rectangular |
|
Housing Type |
Aluminium Housing |
|
Housing Colour |
Black |

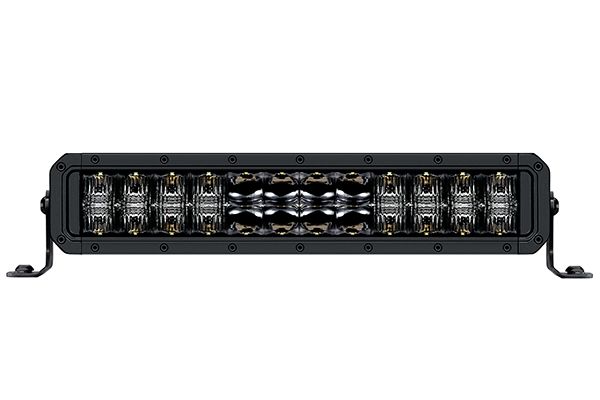

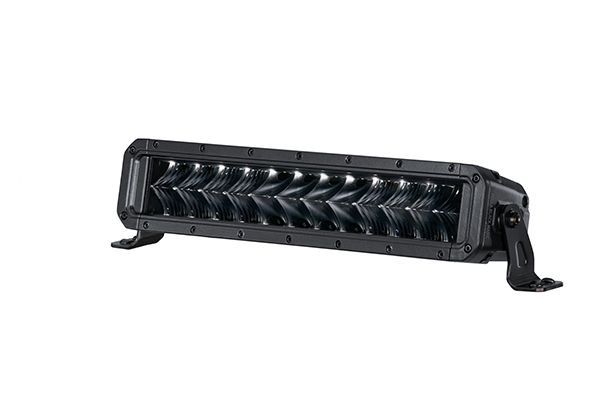

13" Mini Light Bars
|
Mounting Type |
mounting, Screw Connection |
|
Fastening Type |
Vertical |
|
Light Design |
LED |
|
Lamp Type |
LED |
|
Voltage |
12 V, 24 V |
|
Fitting Position |
Front |
|
Height |
91 mm |
|
Length |
354 mm |
|
Width |
75 mm |
|
Depth |
73 mm |
|
Light Function |
with high beam (LED) |
|
Number of light functions |
1 |
|
Prot.type (IP Code) |
IP68, IP69K |
|
Luminous Flux |
3,800 lm |
|
Colour Temperature |
5,700 K |
|
Registration Type |
ECE approved |
|
Fulfils ECE norm. |
R10, R149 |
|
Reference number |
40 |
|
Cable Length |
2,000 mm |
|
Lens Colour |
Crystal clear |
|
Frame Colour |
Black |
|
Shape |
dual version |
|
One-sided/Double-sided |
two-layer |
|
Housing Type |
Aluminium Housing |
|
Housing Colour |
Black |
