CZONE 12 WAY KEYPAD

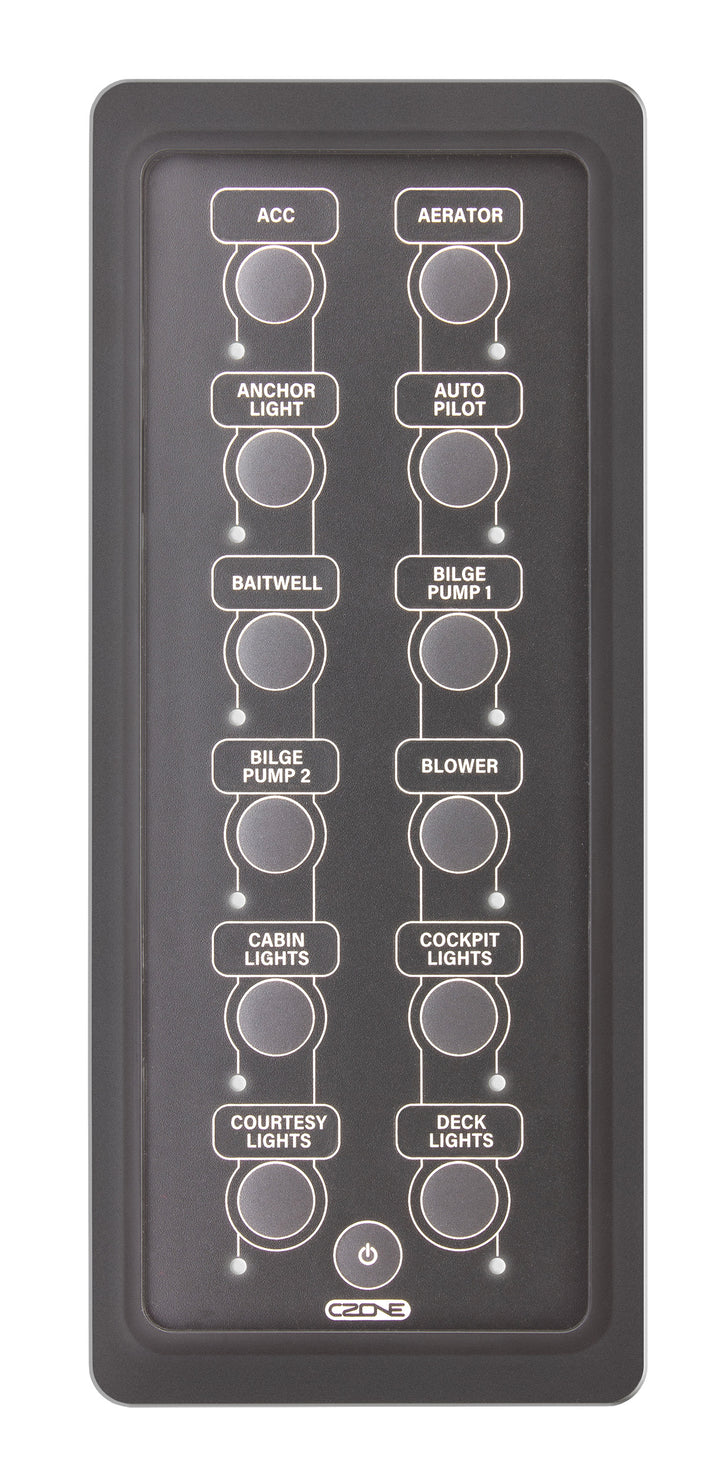

The CZone 12 Way Waterproof Keypad range features dimmable RGB circuit backlighting in a robust IPX7 waterproof enclosure and is available in portrait and landscape orientations. Simplify dashboard installations by removing wiring clutter with a single network cable.

Front mount installation with a single 2-1/16" (52mm) hole saw, or rear mount to achieve a flat mount glass dash style look. Keypads ship with a standard label sheet for personalized circuit labelling.

  • IPX7 submersible
  • Circuit in operation LED's with blown fuse fault indication
  • Dimmable RGB circuit backlighting
  • Low profile with 3 mounting options - front, rear and flush mount
  • Easy hole saw installation with single plug connection

Add a keypad to an existing CZone NMEA network to control other CZone interfaces.

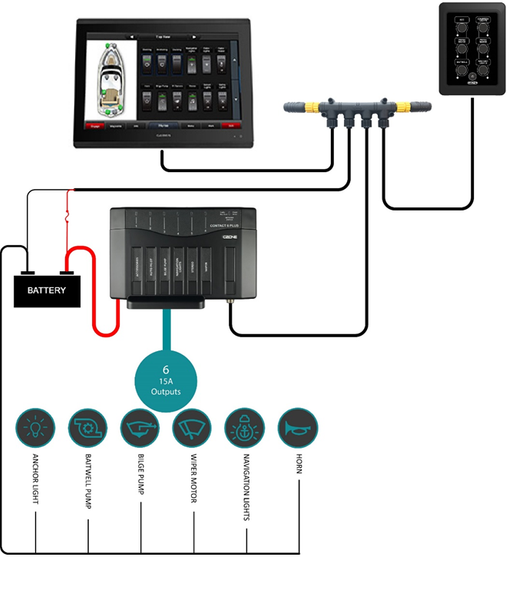

Combine Contact 6 Plus with the Waterproof Keypad and Smart Harness to achieve a very affordable digital switching system. Simple installation with out-of-the box plug-and-play configurations, the Contact 6 Plus System brings powerful and trusted CZone digital switching technology to a very attractive price point.

  • IPX7 waterproof keypads
  • Circuit in operation LED’s with blown fuse fault indication
  • Dimmable RGB circuit backlighting
  • Low profile with 3 mounting options
  • Easy hole saw installation with single plug connection
  • Simplified installation with built-in ignition protected fuse panel
  • Single cable installation behind dash
  • Circuit dimming & smooth start effects
  • Status LED’s for all outputs
  • Ultra low current draw
  • Built in timer functions for circuits like live bait tanks
  • Time of day switching when GPS time on network
  • Voltage monitoring on the NMEA2000 network with load shedding
  • Default factory configuration allows plug and installation with simple on-to-one circuit mapping
  • Affordable add on module to larger CZone systems
  • Blown fuse detection and warning
  • Customized overlays for Keypads

Specifications

General specifications
NMEA 2000 connectivity 1 x CAN Micro-C port
Interface keypad
Backlight color RGB LED with dimming
Supply voltage 9-16 V via CAN
Mounting front and rear mount
Protection degree IPx7
Dimensions, hxwxd 107 x 77 x 32 mm
4.2 x 3.0 x 1.3 inch
Weight 0.115 kg
0.3 lb
Compliance CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected

Technical specifications
Power consumption max. 56 mA / standby 1.8 mA
Temperature range (ambient temp.) -15 °C to 55 °C
5 °F to 131 °F
Temperature range (storage/non operating) -40 °C to 85 °C
-40 °F to 185 °F
