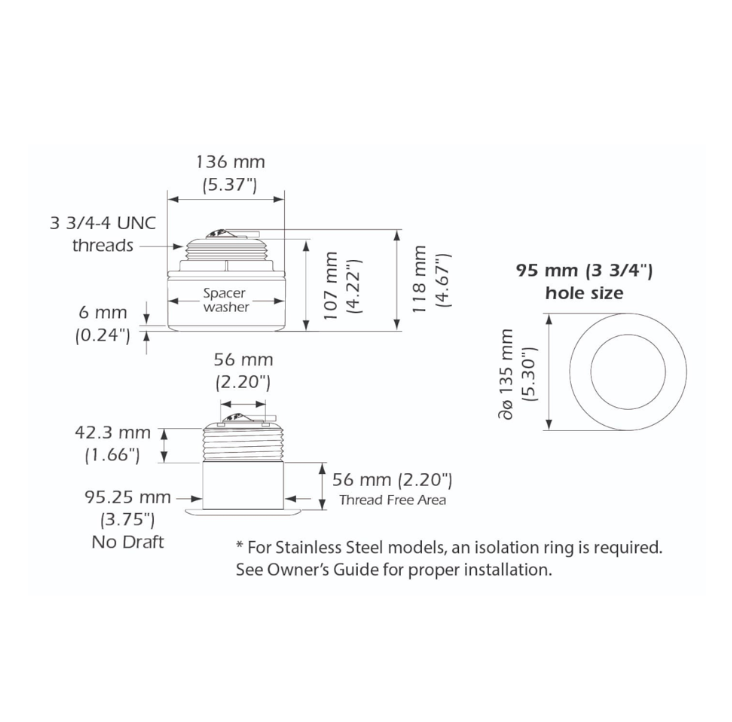

SS175H Airmar Thru-Hull Low Profile
Thru-Hull Chirp Transducers
We do our best to stock the most popular, fast-moving items.
However there are times when your item may need to be ordered in – Check Availability if unsure.
SS175H Chirp-ready Tilted Element™ Thru‑hull
1 kW
Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth—excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also delivers amazing target separation on baitfish and schooling gamefish. The SS175H delivers up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
The SS175H transmits across the following bandwidth:
High frequency 130 to 210 kHz
Tilted Element™ transducers have the element fixed at a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The SS175H is available in three Tilted Element models:
Fixed 20° tilted version for 16° to 24° hull deadrise
Fixed 12° tilted version for 8° to 15° hull deadrise
Fixed 0° tilted version for 0° to 7° hull deadrise
